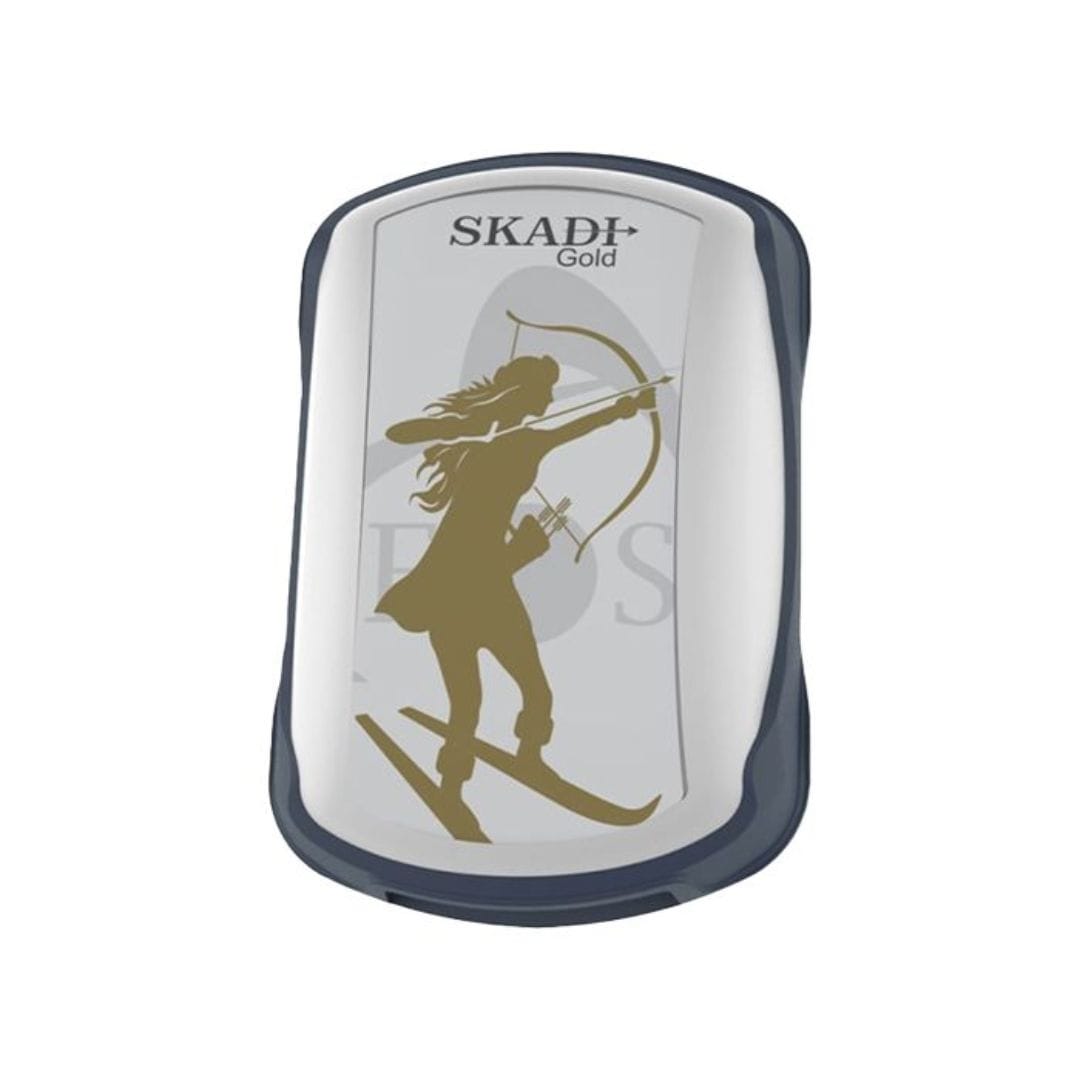

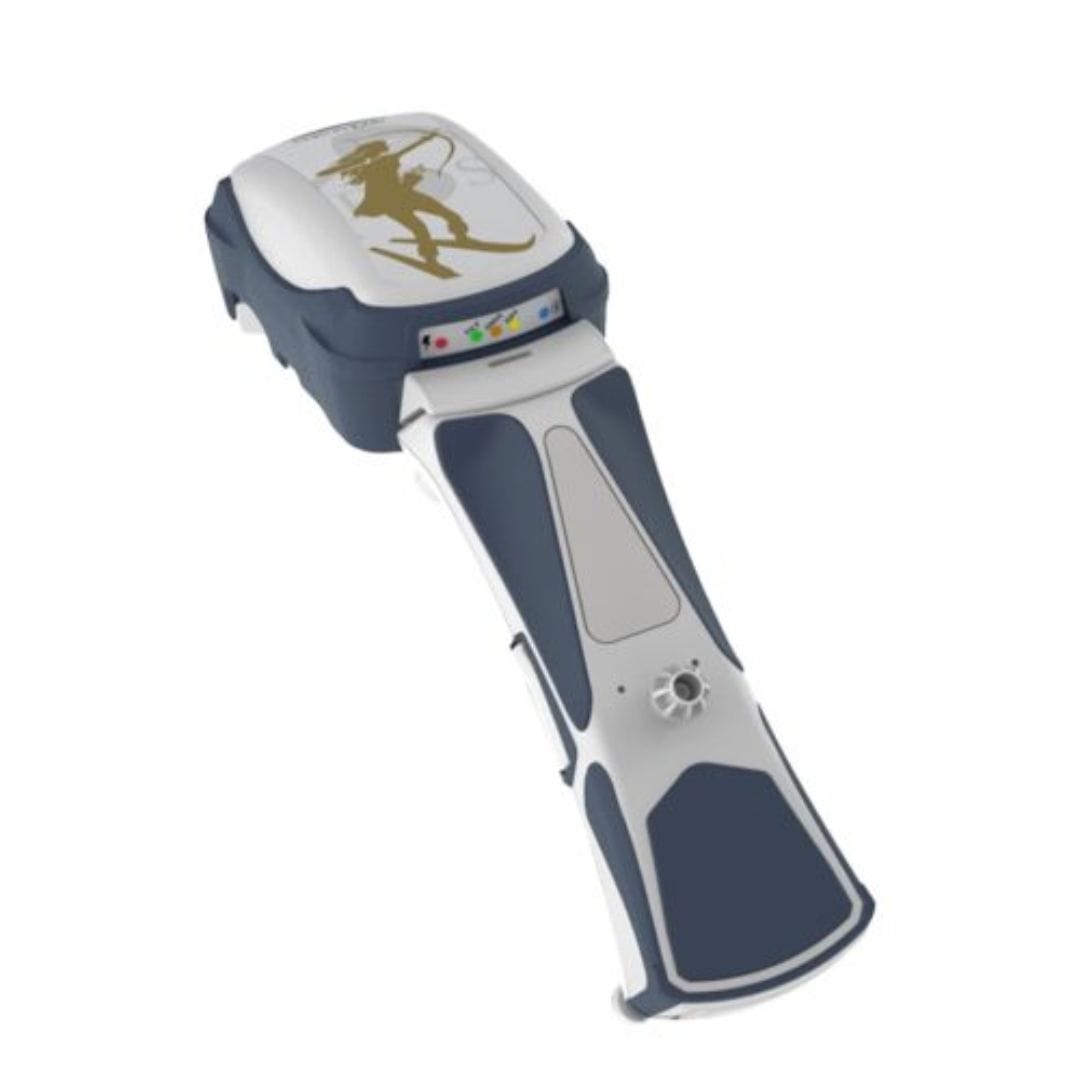

Skadi Gold RTK GNSS Receiver
Skadi Gold RTK GNSS Receiver
Our Most Accurate, Productive, Flexible RTK GNSS Receiver is Skadi Gold RTK GNSS Receiver
- Skadi Gold GNSS Receiver with Integrated Antenna
- Pole Mounting Plate for Skadi Series
- Skadi Standard Handle (upgradable to the Skadi Smart Handle)
- Phone Mounting Bracket for Skadi Series Handles
- Tablet Mounting Bracket for Skadi Series Handles
- Skadi Series Li-Ion Battery Pack
- USB-C Power Adapter
- USB-C Cable
- Skadi Series Hardshell Case
Original price was: ₹850,600.00.₹650,500.00Current price is: ₹650,500.00.
Description
Skadi Gold RTK GNSS Receiver
The Skadi Gold RTK GNSS Receiver is the best, most productive real-time kinematic global navigation satellite system (RTK GNSS) positioning engine in the family of Skadi Series positioning engines developed by Eos Positioning Systems. The engine can work with any existing GNSS frequencies/constellations. Additionally, The Skadi Gold RTK GNSS Receiver can work with any existing RTK network/base stations. You can, therefore, get reliable centimeter-positioning accuracy for your app of choice. Because of its compatibility with SafeRTK, you can get reliable centimeter-positioning accuracy through reliable real-time kinematics feedback, irrespective of a brief loss of real-time kinematics network connectivity because you can rely on its ability to keep your positioning accuracy under 10 centimeters. The Skadi Gold RTK GNSS Receiver also gives you the free option to get free worldwide decimeter accuracy Galileo HAS corrections, but you can also choose to get down to 4 centimeters positioning accuracies where you are unable to get an RTK network/base station, coupled with no internet connection by utilizing a worldwide Atlas correction subscription. The other correction service that the Skadi Gold RTK GNSS Receiver can utilize is the free correction provided by its unparalleled GNSS receivers’ compatibility with free SBAS corrections.
Receiver Type
- All-frequency GPS, GLONASS, BeiDou, Galileo, QZSS receiver with integrated antenna
Channels
- 800+ channels
GNSS Signals Received
- GPS: L1CA, L1P, L1C, L2P, L2C, L5
- GLONASS: G1, G2, G3
- Galileo: E1BC, E5a, E5b, E6BC, E5 (AltBOC)
- BeiDou: B1i, B2i, B3i, B1C, B2A, B2B, B2 (ACEBOC)
- QZSS: L1CA, L2C, L5, LEX
- IRNSS: L5
SBAS Support
- 3-Channel, parallel tracking (with SBAS ranging)
L-Band (Atlas)
- 1-Channel
Accuracy
- RTK: 8 mm1+ 1 ppm horizontal, 2 cm1 + 1 ppm (RMS)
- Skadi Tilt Compensation: RTK accuracy + 0.3 mm per degree of tilt
- Atlas: 4 cm to 50 cm, depending on subscription
- H10: 4 cm HRMS1
- H30: 15 cm HRMS1
- H50 (Basic): 30 cm HRMS1
- Galileo HAS < 20 cm 2dRMS
- SBAS < 30 cm HRMS1, < 60 cm 2dRMS
- Autonomous: 1.2 meters HRMS1
Miscellaneous Specifications
- Standard Update Rate: Up to 10 Hz (20 Hz optional activation)
- Cold Start: < 60 seconds typical (no almanac or time)
- Reacquisition: < 1 second
- Maximum Speed: 1,850 kph (1,150 mph / 999 knots)
- Maximum Altitude: 18,288 m (60,000 ft)
Output Datum
- Autonomous Datum: WGS-84 (latest revision)
- SBAS and Atlas Datum: ITRF (current year epoch)
- Galileo HAS Datum: GTRF (latest implementation)
- RTK Datum: Same as RTK base station/network
Communication
- Ports: Bluetooth, USB-C 2.0, serial
- Pre-Qualified Bluetooth: Dual-mode Bluetooth v4.2 BD/EDR – BLE (v5.1 tested)
- Supported Bluetooth Profiles: SPP, iAP2
- Bluetooth Transmission: Class 1 with 200 m typical range2
- Data I/O Protocol: NMEA 183, RTCM SC-104, binary
- Raw Measurement Data: Binary and RINEX
- Correction I/O Protocol: RTCM 2.x, 3.x, MSM, proprietary binary
- Timing Output: 1PPS, CMOS, Active High, Rising Edge Sync, 10 kΩ, 10 pF Load (via serial port)
- Event Marker Input: CMOS, Active Low, Falling Edge Sync, 10 kΩ, 10 pF Load (via serial port)
Skadi Receiver Power
- Battery Type: Field replaceable, 24 Wh rechargeable Lithium-ion pack (rechargeable inside the receiver or separately)
- Battery Autonomy (without tilt compensation): 9+ hours3
- Battery Autonomy (with tilt compensation): 8+ hours3
- Charging Time: 2.5 hours (with supplied 20W USB-C power adapter)
- Hot-Swap Back-up Battery Autonomy: 10+ minutes
Environmental Details
- Operating Temperature: -40° C to +85° C (-40° F to +185° F)3
- Storage Temperature: -40° C to +85° C (-40° F to +185° F)
- Humidity: 95 % non-condensing
- Compliance: FCC, CE, RoHS and lead-free
Mechanical Details
- Enclosure Material: Xenoy with TPU overmold
- Enclosure Rating: Waterproof, designed to meet IP-67
- Immersion: 30 cm, 30 minutes
- Receiver Dimensions: 14.2 cm x 9.5 cm x 6 cm (5.6″ x 3.7″ x 2.3″)
- Skadi Standard Handle Dimensions: 26.6 cm x 7.6 cm x 16.2 cm (10.5” x 3.0” x 6.4”)
- Weight with Battery: 610 g (1.34 lbs)
- Weight with Skadi Standard Handle: 935 g (2.06 lbs)
- USB Connector: USB type C receptacle
- Serial Connector: 5-pin circular jack
- External Antenna Connector: HD-BNC female
Included Accessories
- Skadi Gold RTK GNSS Receiver with integrated antenna
- Pole mounting plate for Skadi Series
- Skadi Standard Handle
- Phone mounting bracket for Skadi Series handles
- Tablet mounting bracket for Skadi Series handles
- Skadi Series Li-ion battery pack
- USB-C power adapter
- USB-C cable
- Skadi Series hardshell case
- Skadi Tilt Compensation
- Skadi Smart Handle
- 20 Hz data output rate
- External antenna and cable
- Spare Skadi Series battery pack
- Atlas Satellite Correction Service
