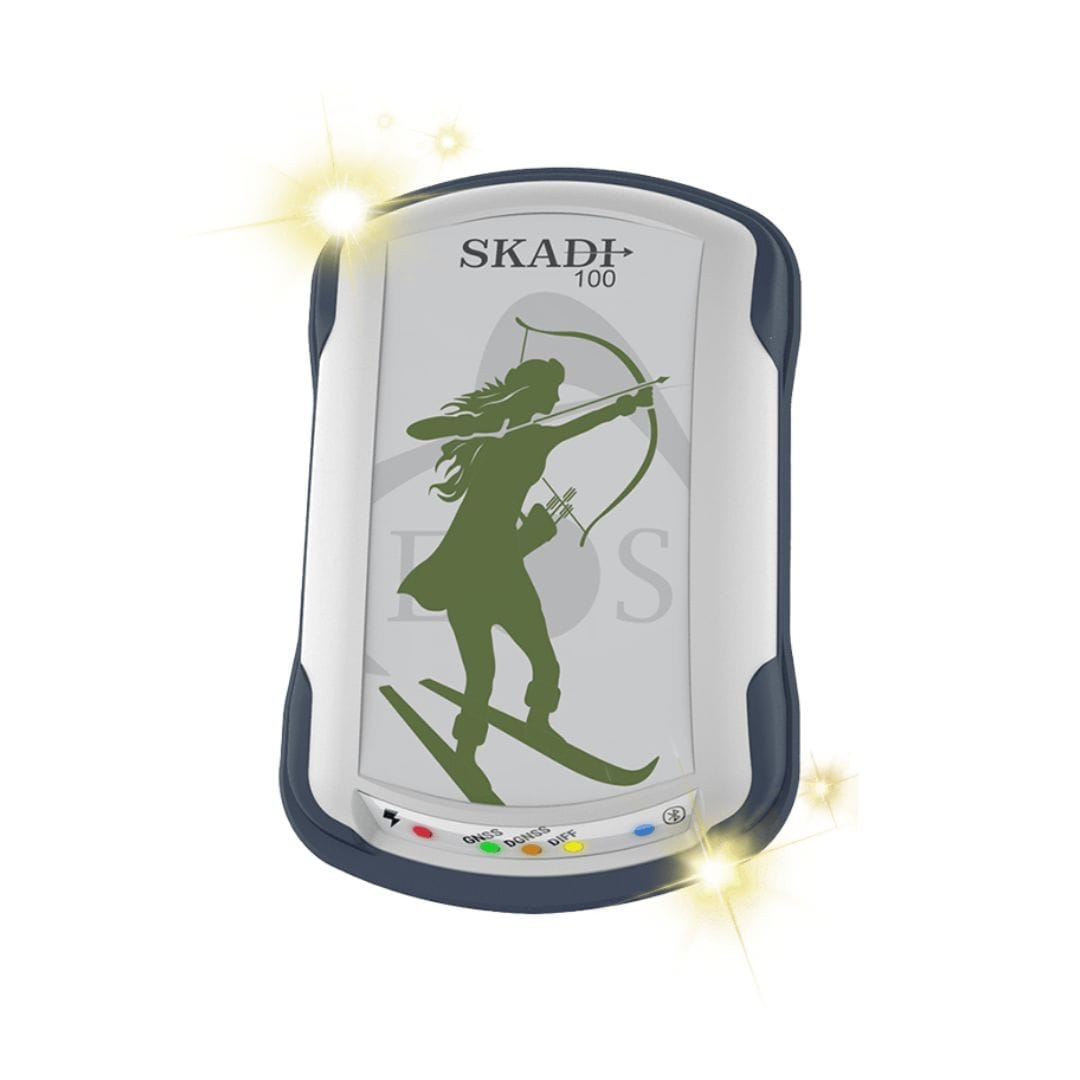

Skadi 100 GNSS Receiver

Skadi 100 GNSS Receiver

Skadi 100 GNSS Receiver

Our Most Affordable Skadi Series GNSS Receiver for Submeter Field Work

  • Skadi 100 GNSS Receiver with Integrated Antenna
  • Pole Mounting Plate for Skadi Series

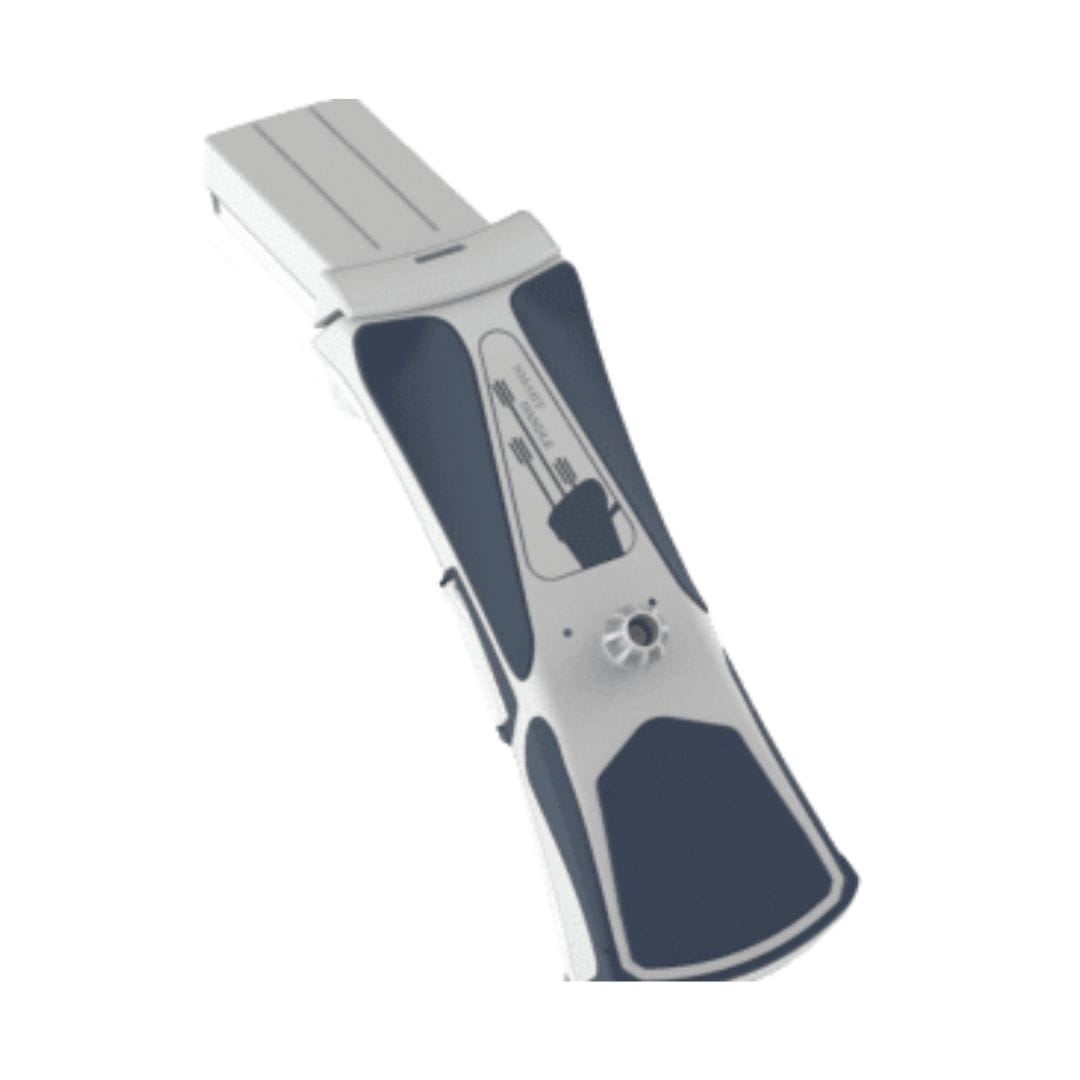

  • Skadi Standard Handle
  • Phone Mounting Bracket for Skadi Series Handles
  • Tablet Mounting Bracket for Skadi Series Handles
  • Skadi Series Li-Ion Battery Pack
  • USB-C Power Block
  • USB-C Cable

Original price was: ₹320,400.00.Current price is: ₹250,500.00.

Category: Tags: ,
Eos

Description

Skadi 100 GNSS Receiver

The Skadi 100 GNSS Receiver is the affordable and entry-level version of our GNSS receiver family within the Skadi series of Eos Positioning Systems. Skadi 100 GNSS Receiver provides single frequency for all the GNSS constellations. It allows you to access sub meter, mapping-grade position accuracy with the use of the available satellite-based augmentation system signals for free. It is also available for use with any iOS or Android or even the Windows-based mobile devices.

In addition to the accuracy and superior performance you have come to expect from any Eos GNSS receiver product line, the Skadi 100 GNSS Receiver offers a number of sophisticated mapping technologies exclusive to the Skadi Series product line:
An Integrated Antenna & Hot-Swap All-Day Battery Solution – perfect for any field installation scenario.

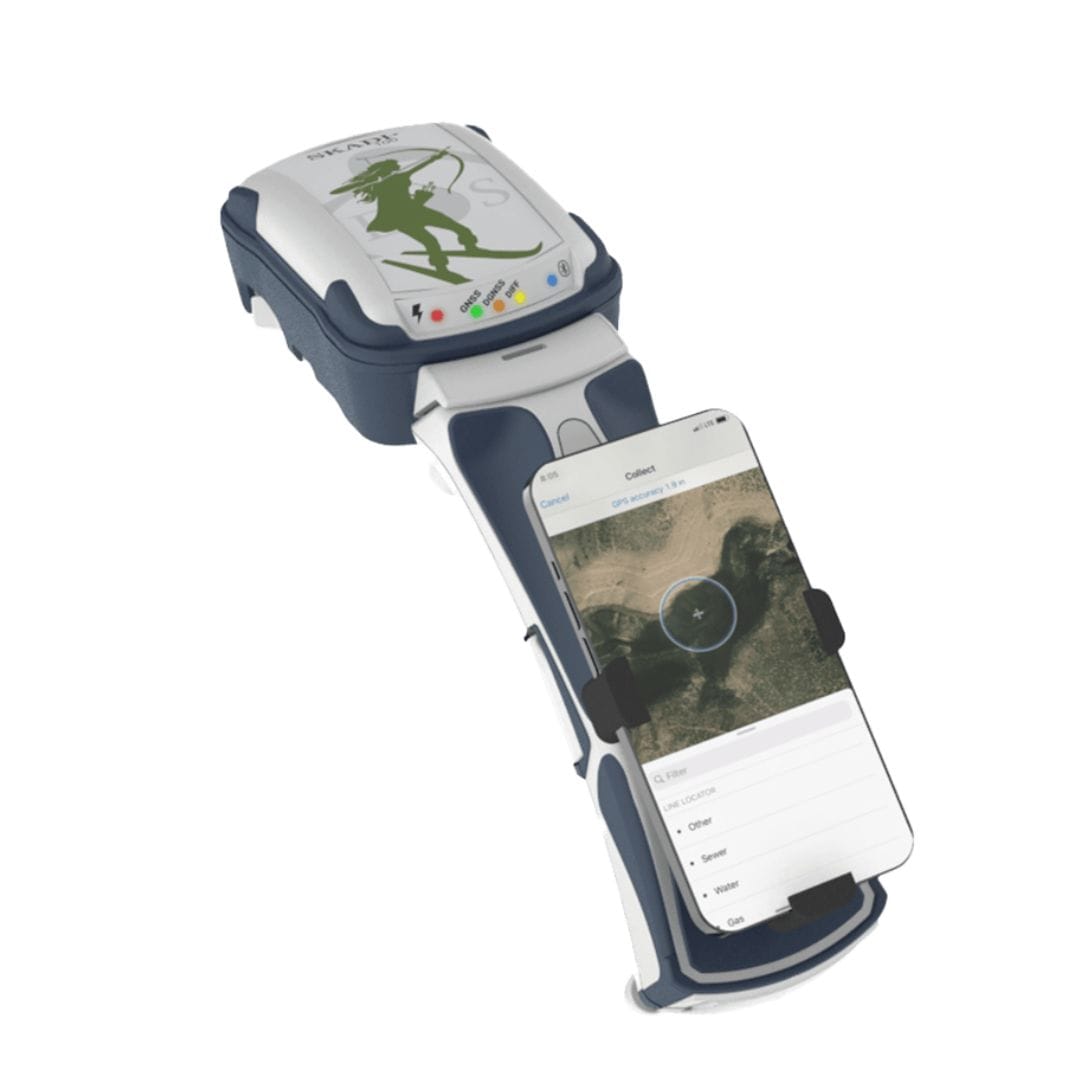

With the included Skadi Standard Handle on the Skadi 100 system, the versatility to easily go from a handheld deployment scenario to a range pole scenario and more!

Receiver Type

  • Submeter single-frequency multi-constellation GNSS receiver

GNSS Signals Received

  • GPS: L1CA, L1P, L1C
  • GLONASS: G1
  • Galileo: E1BC
  • BeiDou: B1i
  • QZSS: L1CA

SBAS Support

  • 3-Channel, parallel tracking (with SBAS ranging)

L-Band (Atlas)

  • 1-Channel

Accuracy

  • Autonomous Accuracy: 1.2 meters HRMS1
  • SBAS (Worldwide) Accuracy: 30 cm HRMS1, < 60 cm 2dRMS
  • Atlas: H50 (Basic): 30 cm HRMS1

Miscellaneous Specifications

  • Standard Update Rate: 1 Hz. (10 Hz or 20 Hz optional activations)
  • Cold Start: < 60 seconds typical (no almanac or time)
  • Reacquisition: < 1 second
  • Maximum Speed: 1,850 kph (1,150 mph / 999 knots)
  • Maximum Altitude: 18,288 m (60,000 ft)

Output Datum

  • Autonomous Datum: WGS-84 (latest revision)
  • SBAS and Atlas Datum: ITRF (current year epoch)

Communication

  • Ports: Bluetooth, USB-C 2.0, serial
  • Pre-Qualified Bluetooth: Dual-mode Bluetooth v4.2 BD/EDR – BLE (v5.1 tested)
  • Supported Bluetooth Profiles: SPP, iAP2
  • Bluetooth Transmission: Class 1 with 200 m typical range2
  • Data I/O Protocol: NMEA 183, RTCM SC-104, binary
  • Raw Measurement Data: Binary and RINEX
  • Correction I/O Protocol: RTCM 2.x, 3.x, MSM, proprietary binary
  • Timing Output: 1PPS, CMOS, Active High, Rising Edge Sync, 10 kΩ, 10 pF Load (via serial port)
  • Event Marker Input: CMOS, Active Low, Falling Edge Sync, 10 kΩ, 10 pF Load (via serial port)

Skadi Receiver Power

  • Battery Type: Field replaceable, 24 Wh rechargeable Lithium-ion pack (rechargeable inside the receiver or separately)
  • Battery Autonomy (without tilt compensation): 13+ hours3
  • Charging Time: 2.5 hours (with supplied 20 W USB-C power adapter)
  • Hot-Swap Back-up Battery Autonomy: 10+ minutes

Environmental Details

  • Operating Temperature: -40° C to +85° C (-40° F to +185° F)3
  • Storage Temperature: -40° C to +85° C (-40° F to +185° F)
  • Humidity: 95% non-condensing
  • Compliance: FCC, CE, RoHS and lead-free

Mechanical Details

  • Enclosure Material: Xenoy with TPU overmold
  • Enclosure Rating: Waterproof, designed to meet IP-67
  • Immersion: 30 cm, 30 minutes
  • Receiver Dimensions: 14.2 cm x 9.5 cm x 5.5 cm (5.6″ x 3.7″ x 2.16″)
  • Skadi Standard Handle Dimensions: 26.6 cm x 7.6 cm x 16.2 cm (10.5” x 3.0” x 6.4”)
  • Weight with Battery: 610 g (1.34 lbs)
  • Weight with Skadi Standard Handle: 935 g (2.06 lbs)
  • USB Connector: USB type C receptacle
  • Serial Connector: 5-pin circular jack
  • External Antenna Connector: HD-BNC female

Included Accessories

  • Skadi 100 GNSS receiver with integrated antenna
  • Pole mounting plate for Skadi Series
  • Skadi Standard Handle
  • Phone mounting bracket for Skadi Series handles
  • Tablet mounting bracket for Skadi Series handles
  • Skadi Series Li-ion battery pack
  • USB-C power adapter
  • USB-C cable

Optional Accessories

  • 10 Hz or 20 Hz data output rate
  • External antenna and cable
  • Spare Skadi Series battery pack
  • Atlas H50 satellite correction service
